Reference Spectral Data

A key feature of the Eye is the ability to plot spectral reference lines over data. The loading, managament, and display of reference data is handled by two classes: ReferenceData and ReferenceWindow.

Reference Data

The ReferenceData class, found at sofia_redux.visualization.models.reference_model, manages the reference data. It is responsible for reading in and storing the data in a dictionary. The keys are the transition labels and the values are a list of transition wavelengths associated with the transition. Additionally the ReferenceData class keeps track of the units of the lines. By default it is assumed the initial units are microns. If the units of the pane on which the lines are plotted are different, the ReferenceData class uses the convert_wave method in the utils module to return a copy of the reference lines converted into the target wavelengths. The original data as read in is never altered.

Reference data can be formatted in either single column or double column formats. In a single column file it is assumed the data are the wavelengths of the spectral lines and are given the label of “<wavelength> um’. For a two column data file it is assumed the first column is the wavelength and second column is the label. The columns can be seperated by commas, pipes, or whitespace. Any addition columns are ignored, as are any lines starting with ‘#’.

Reference Window

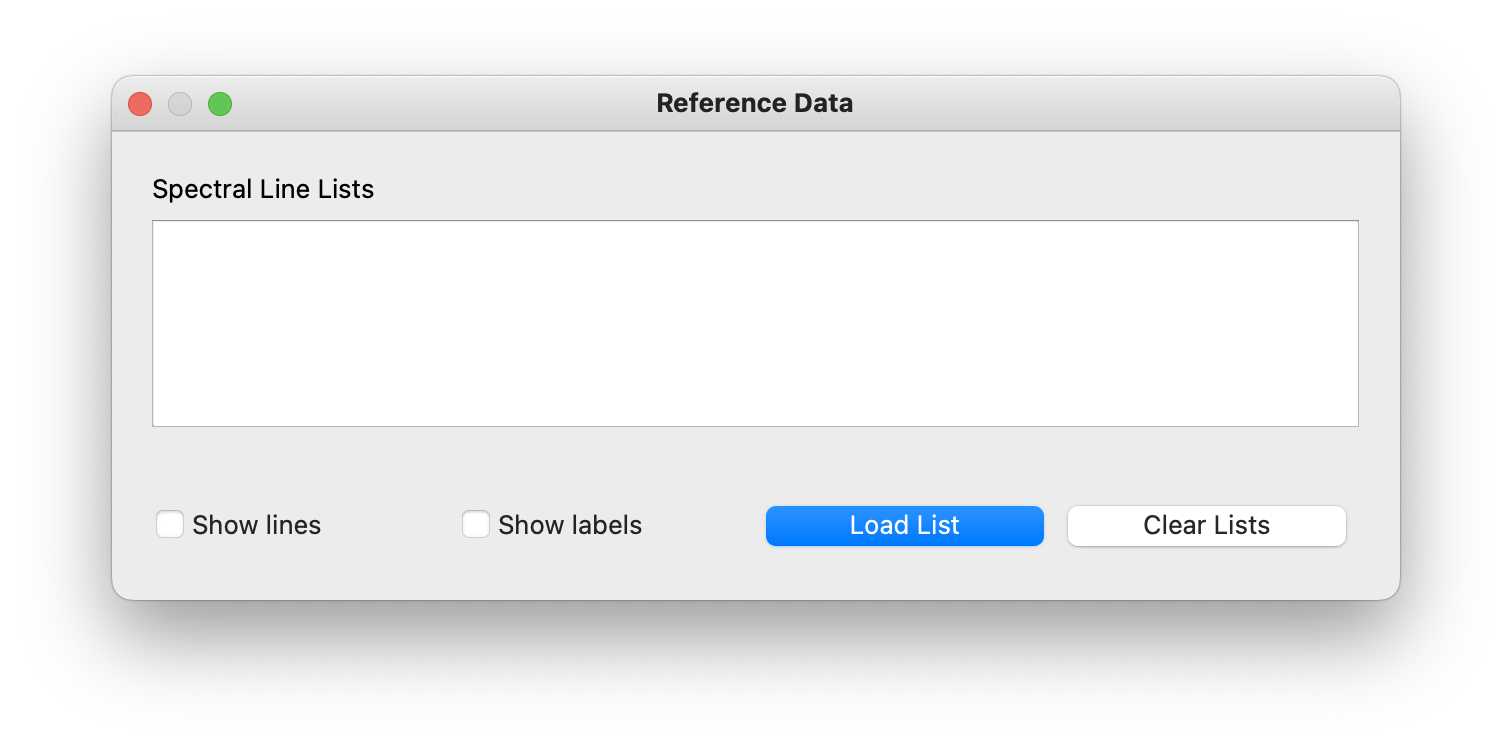

The ReferenceWindow class, found at sofia_redux.visualization.display.reference_window, manages the GUI interface to load and inspect reference data. The base window, opened by clicking the “Open” button next to “Reference Data” in the “Analysis” tab of the Eye, looks like Fig. 136 .

Reference data window for loading spectral lines.

Fig. 136 Reference data window for loading spectral lines.

Multiple reference data files can be loaded at once, and any duplicates will be ignored. Once data files are loaded in their original source is dropped, condensing all data into a single list. The lines and labels can be hidden with the checkboxes in this window as well. Double-clicking on a filename after loading it opens a simple display that shows the details of the reference data. The window is managed by the TextView class, found at sofia_redux.visualization.display.text_view . This simple view shows the loaded wavelengths and their associated labels, and includes filtering and search functionality for additional inspection.
